n8n+crawl4ai

安装 crawl4ai

docker pull unclecode/crawl4ai:all-arm64

# 不同平台的选择不同的拉取镜像的方式
docker pull unclecode/crawl4ai:all-amd64

启动一个容器

docker run --rm -it \
-e CRAWL4AI_API_TOKEN=12345 \
-p 11235:11235 \
unclecode/crawl4ai:all-arm64

docker run --rm -it \
-e CRAWL4AI_API_TOKEN=12345 \
-p 11235:11235 \
unclecode/crawl4ai:all-arm64
INFO:     Started server process [1]
INFO:     Waiting for application startup.
INFO:     Application startup complete.
INFO:     Uvicorn running on http://0.0.0.0:11235 (Press CTRL+C to quit)
INFO:     192.168.215.1:53119 - "GET / HTTP/1.1" 307 Temporary Redirect
INFO:     192.168.215.1:53119 - "GET /mkdocs HTTP/1.1" 307 Temporary Redirect
INFO:     192.168.215.1:53119 - "GET /mkdocs/ HTTP/1.1" 200 OK

使用127.0.0.1:11235进行访问，如果看到了他的文档页面，则说明成功了。

它的依据是找到网站的sitemaps.xml来实现抓取内容的，如果有的网站没有的话，可以去这个网站将对应的网址复制进去就可以生成：https://www.xml-sitemaps.com/

抓取数据的时候还需要参考网站的robots.txt

案例网址：https://docs.crawl4ai.com/sitemap.xml

n8n 本地部署安装

docker volume create n8n_data
docker run -it --rm --name n8n -p 5678:5678 -v n8n_data:/home/node/.n8n -v ~/Downloads/md:/home/node -e N8N_COMMUNITY_PACKAGES_ALLOW_TOOL_USAGE=true docker.n8n.io/n8nio/n8n

docker run -it --rm --name n8n -p 5678:5678 -v n8n_data:/home/node/.n8n n8nio/n8n

docker run -it -d \
	--name n8n \
  -p 5678:5678 \
  -v n8n_data:/home/node/.n8n \
  -e N8N_SECURE_COOKIE=false \
  n8nio/n8n

搭建工作

选择on change message，随便输入一段内容就可以触发节点开始，这里我们输入：https://docs.crawl4ai.com/sitemap.xml，方便后续的 HTTP 请求测试
添加一个新节点，输入HTTP Request，URL 选择上一步的chatInput，拖拽过去就行。

点击放大

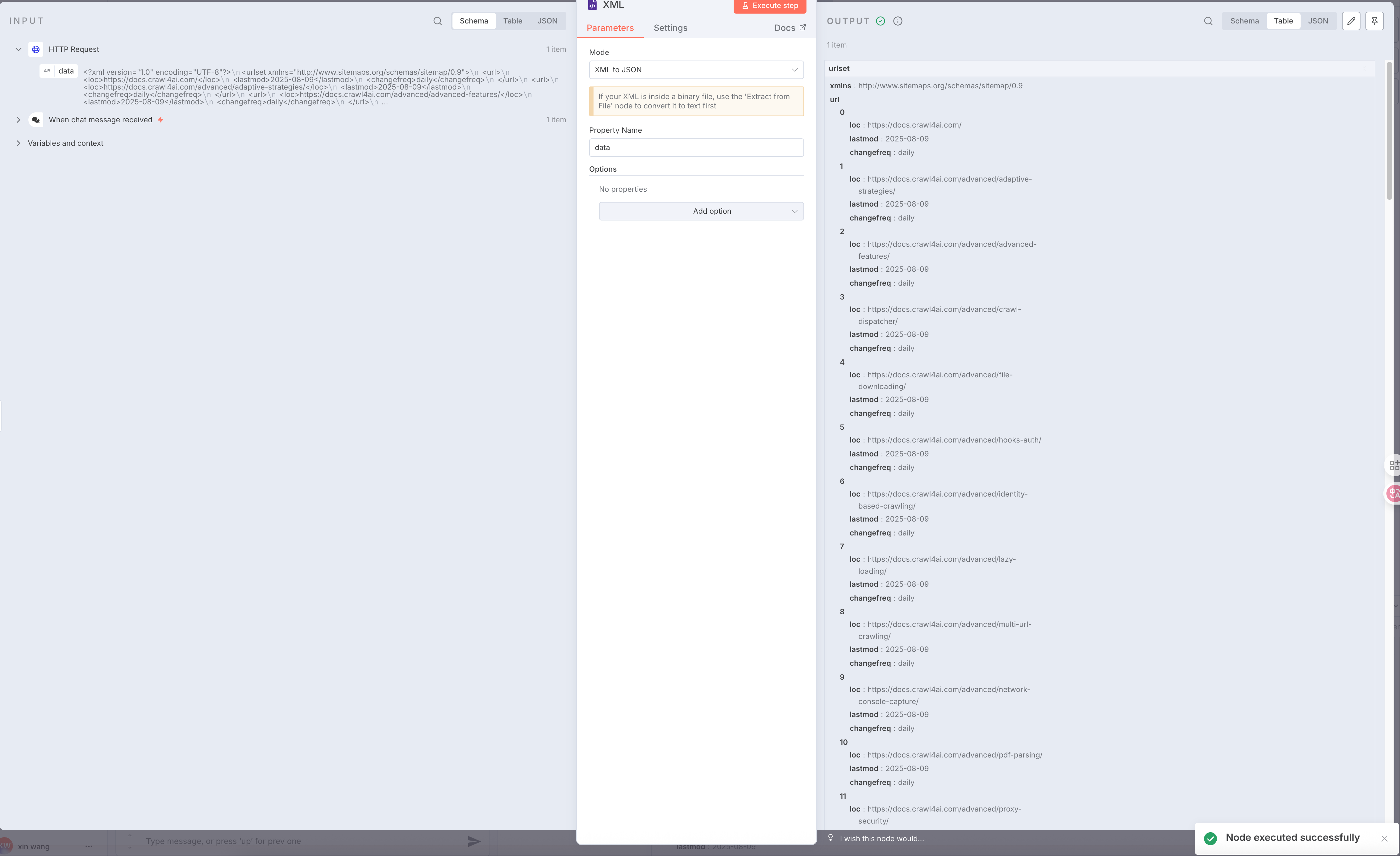

我们拿到的是一个xml内容，所以我们需要转换成json格式
点击放大

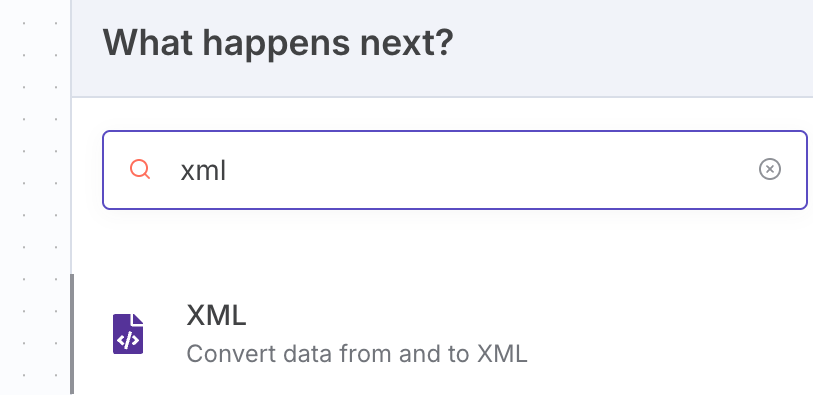

我们搜索一个xml节点，里面有可以将xml转换成json的选项配置
点击放大

接着选择一个新节点，输入Split Out，将左侧的urlset.url拖拽过来放入Fields To Split Out输入框里，点击测试可以得到一个数据

[
  {
    "loc": "https://docs.crawl4ai.com/",
    "lastmod": "2025-08-09",
    "changefreq": "daily"
  },
  {
    "loc": "https://docs.crawl4ai.com/advanced/adaptive-strategies/",
    "lastmod": "2025-08-09",
    "changefreq": "daily"
  },
  {
    "loc": "https://docs.crawl4ai.com/advanced/advanced-features/",
    "lastmod": "2025-08-09",
    "changefreq": "daily"
  },
  {
    "loc": "https://docs.crawl4ai.com/advanced/crawl-dispatcher/",
    "lastmod": "2025-08-09",
    "changefreq": "daily"
  },
  {
    "loc": "https://docs.crawl4ai.com/advanced/file-downloading/",
    "lastmod": "2025-08-09",
    "changefreq": "daily"
  },
  {
    "loc": "https://docs.crawl4ai.com/advanced/hooks-auth/",
    "lastmod": "2025-08-09",
    "changefreq": "daily"
  },
  {
    "loc": "https://docs.crawl4ai.com/advanced/identity-based-crawling/",
    "lastmod": "2025-08-09",
    "changefreq": "daily"
  },
  {
    "loc": "https://docs.crawl4ai.com/advanced/lazy-loading/",
    "lastmod": "2025-08-09",
    "changefreq": "daily"
  },
  {
    "loc": "https://docs.crawl4ai.com/advanced/multi-url-crawling/",
    "lastmod": "2025-08-09",
    "changefreq": "daily"
  },
  {
    "loc": "https://docs.crawl4ai.com/advanced/network-console-capture/",
    "lastmod": "2025-08-09",
    "changefreq": "daily"
  }
]

添加一个Limit节点，来限制抓取的数量，这里我们输入 2 个就行
再添加一个Loop Over Items，来处理循环，这里我们每次循环只处理一个url，Batch Size输入 1 即可。
将循环的一个处理节点换成HTTP Request，换成Post请求，地址换成：http://host.docker.internal:11235/crawl，这是我们使用 docker 部署的 crawl4ai 提供的抓取数据的 API，注意我们使用的是 docker 部署的，所以得这么写。还需添加反向代理，
点击放大

点击放大

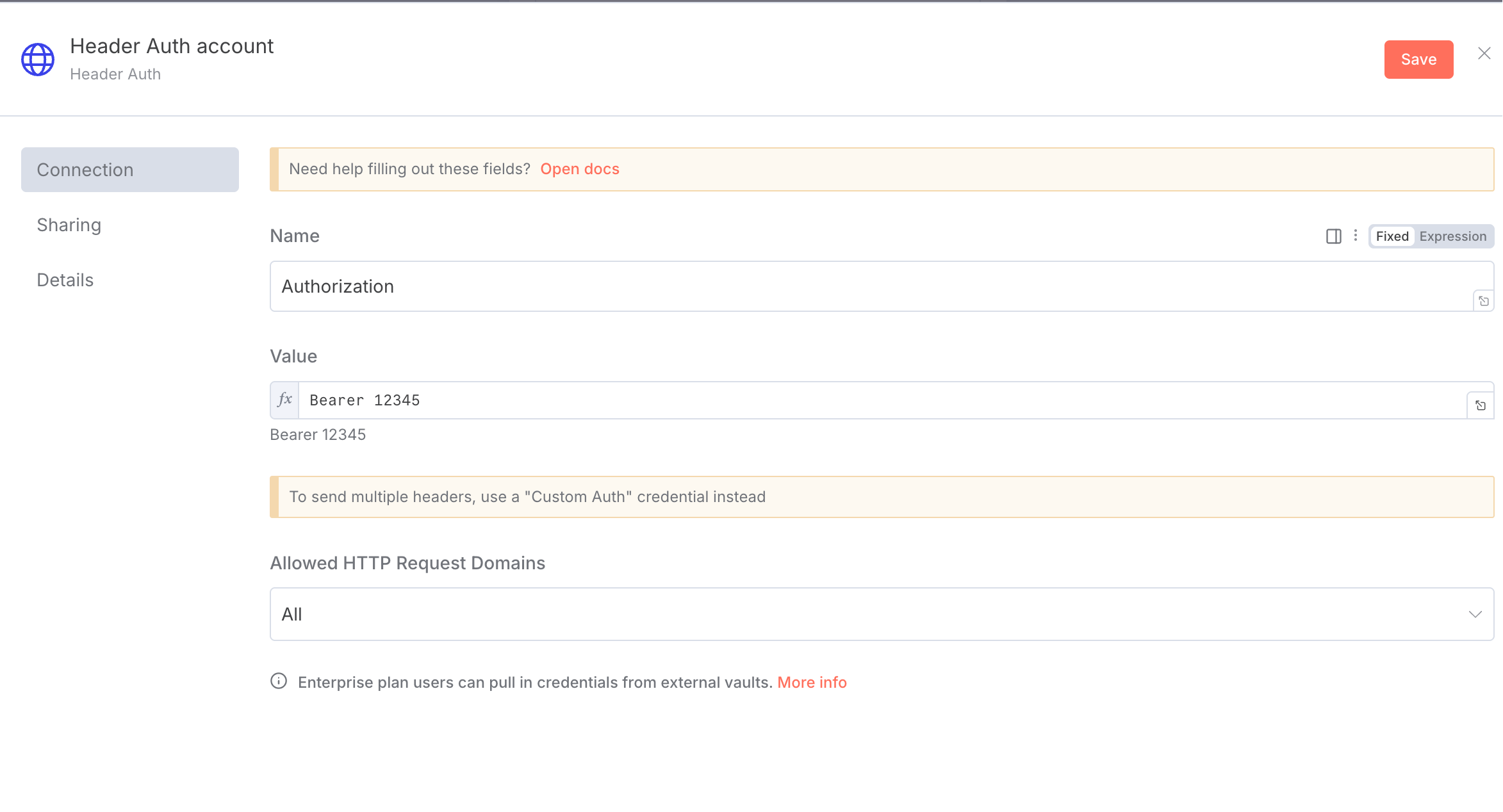

还得打开下面的Send Body开关，消息体需要 2 个字段，一个是urls一个是priority

点击放大

这里的返回结果是一个task_id，我们现在配置的只是创建了一个抓取任务，真正去执行抓取任务的还得另外配置。

最后我们再添加一个wait节点，输入等待的 7 秒，这是为了让我们每次抓取数据之前等待几秒，防止对方网站触发风控。

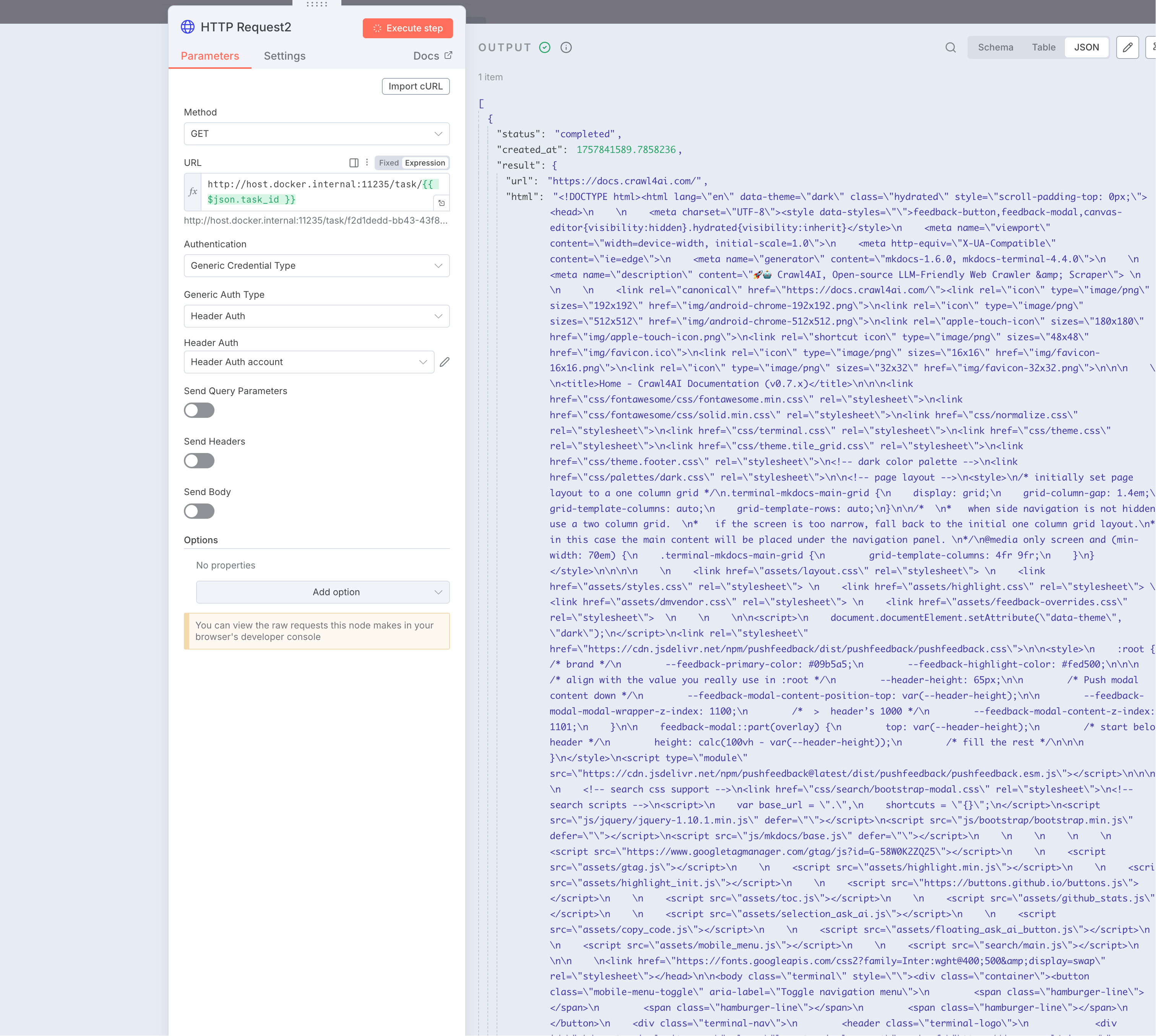

最后在添加一个HTTP Request节点，最终就是调用crawl4ai的抓取接口来执行抓取任务返回结果。

输入链接为：http://host.docker.internal:11235/task/2个大括号变量获取的任务id 2个大括号结束

这里因为mdc编译问题，导致对应的任务 id 可能不能以英文形式展现。

这里的task_id也就是前面步骤获取到的task_id,请求验证方式和前面一样。

点击放大

注意这里的status的状态值是completed，下面我们就可以使用if节点来判断是否抓取成功了。

添加if节点之后，可以直接拖拽左侧status过来，然后is equal to，右侧填写completed来进行测试。

if节点会返回 2 个选项，一个是true，一个是false，我们再返回true的节点后面添加一个AI Agent

这里我们选择Define below，输入以下提示词：

角色设定：
你是一名信息结构化和知识库开发的专家，请始终保持专业态度。你的任务是将 markdown 数据整理为适合 LLM 驱动的 RAG 知识库的结构化、易读格式。

任务要求：

1. 内容解析：
   - 识别 markdown 数据中的关键内容和主要结构
2. 结构化整理
   - 以清晰的标题和分层逻辑组织信息，使其易于检索和理解
   - 保留所有可能对回答用户查询有价值的细节
3. 创建 FAQ (如适用)
   - 根据内容提炼出常见问题，并提供清晰、直接的解答
4. 提升可读性
   - 采用项目符号、编号列表、段落分隔等格式化排版，使内容更直观
5. 优化输出
   - 严格去除 AI 生成的附加说明，仅保留清理后的核心数据

响应规则：

1. 完整性：确保所有相关信息完整保留，避免丢失对搜索和理解有价值的内容
2. 精准性：FAQ 需紧密围绕内容，确保清晰、简洁且符合用户需求
3. 结构优化：确保最终输出便于分块存储、向量化处理，并支持高效检索

数据输入：
<markdown>XXX</markdown>

最终找到左侧下边的一个markdown拖拽过来替换掉XXX

变成

<markdown>2 个大括号 美元符 json.result.markdown 2 个大括号结束</markdown>

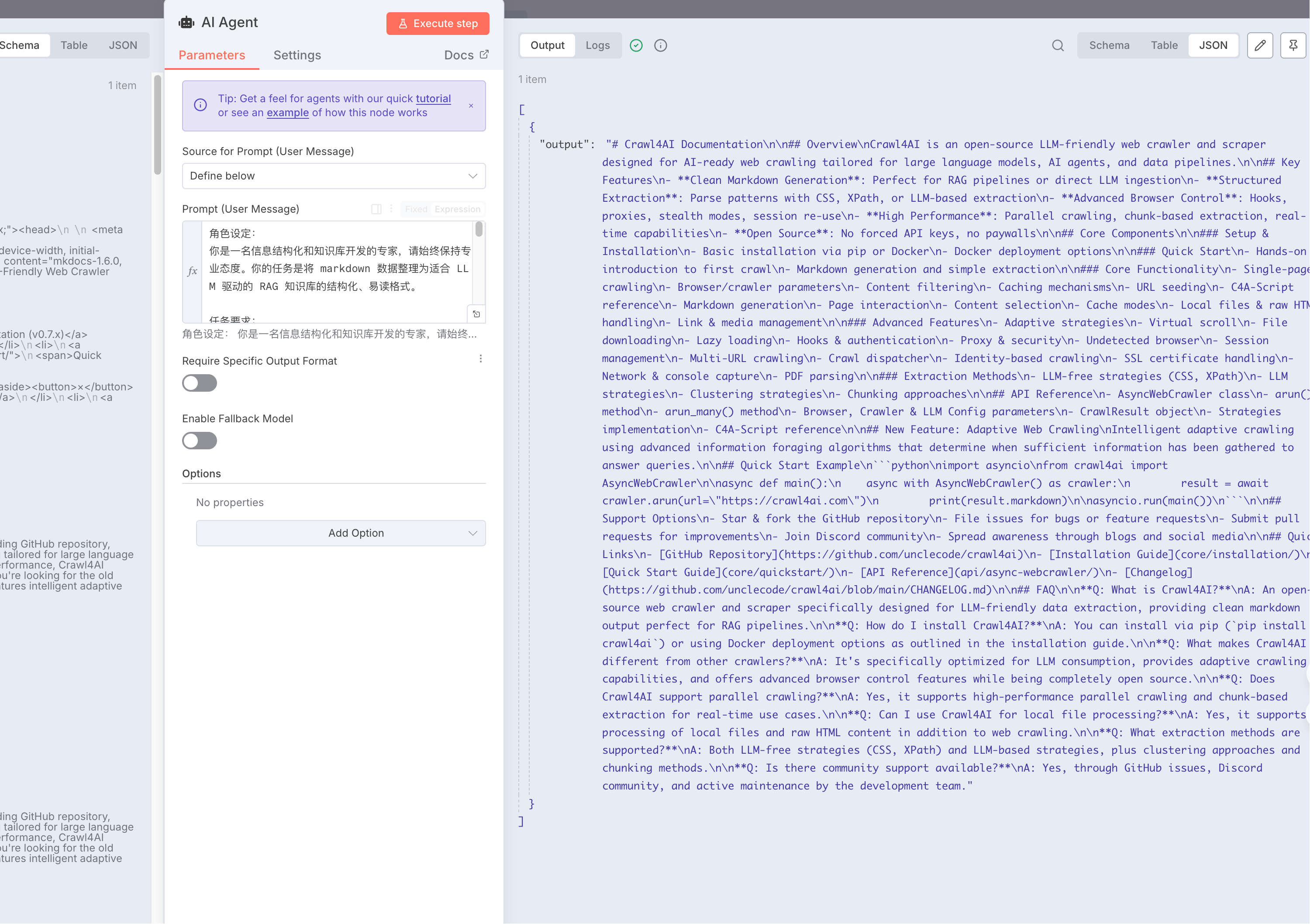

然后给AI Agent添加chat model，选择DeepSeek，输入对应的API KEY，选择deepseek-chat模型就足够了。

然后我们可以点击测试看看结果。

点击放大

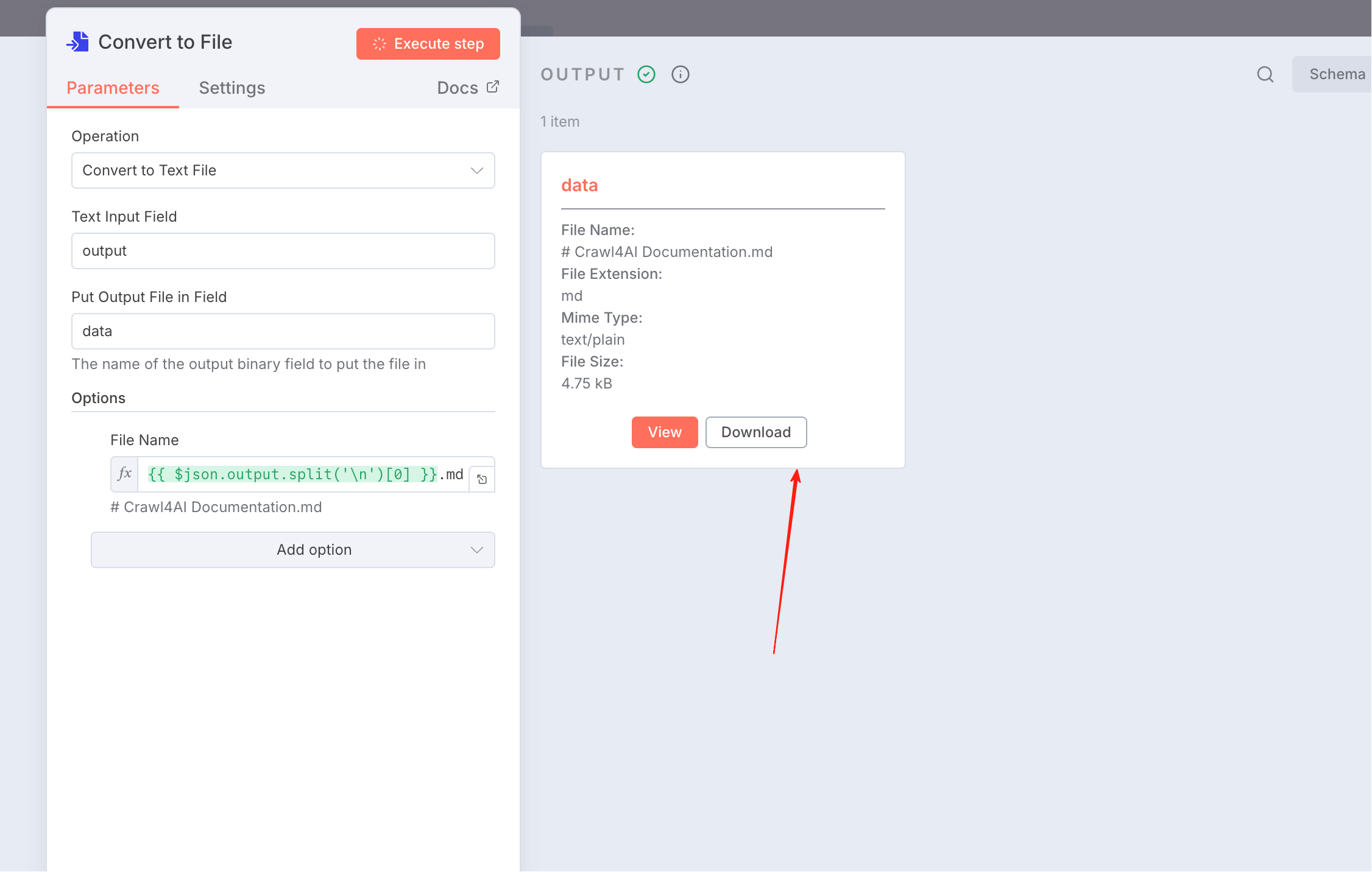

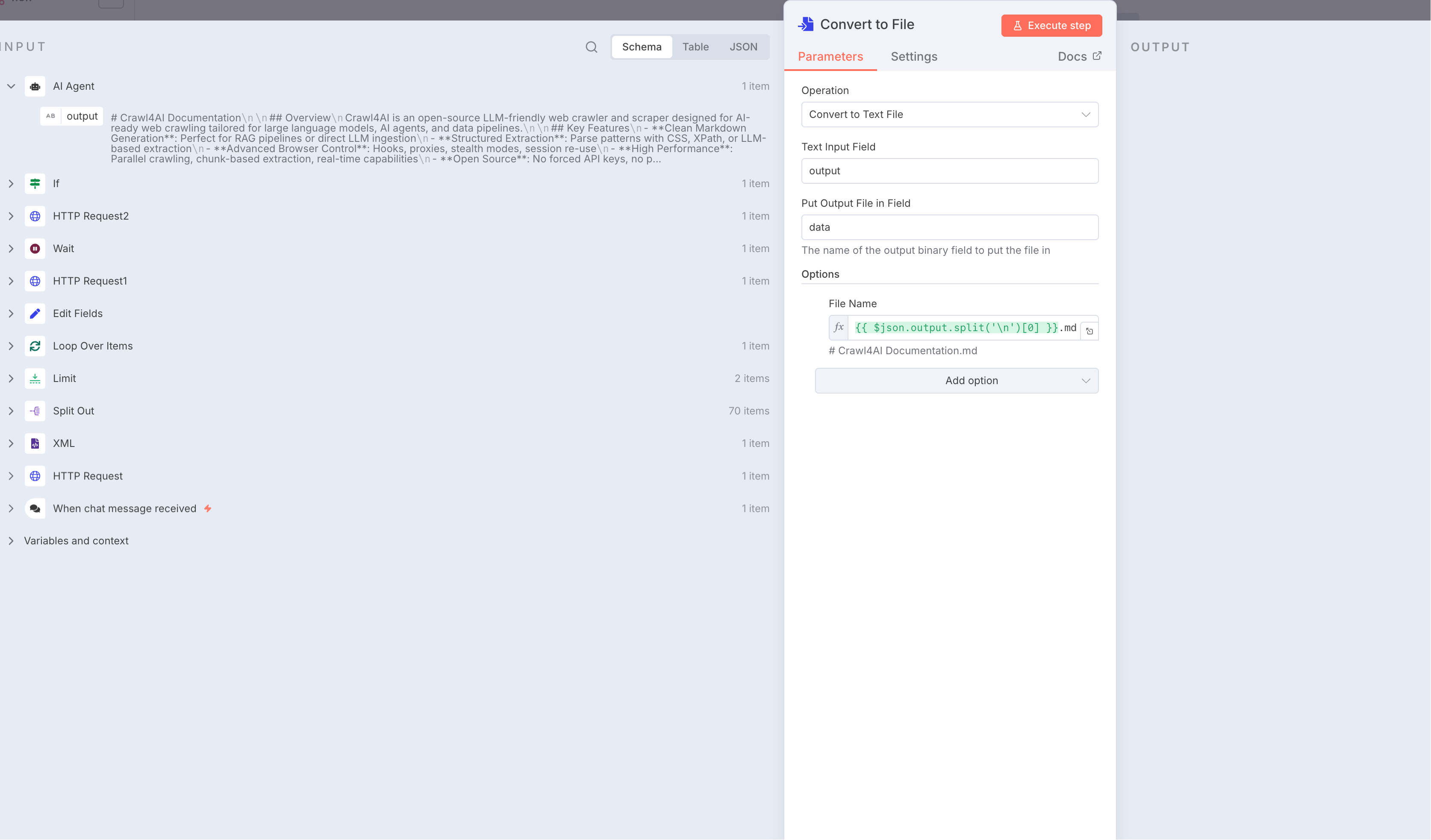

最终我们添加一个Convert to text file节点，保存到本地文件内容中

点击放大

最终内容

# Crawl4AI Documentation

## Overview

Crawl4AI is an open-source LLM-friendly web crawler and scraper designed for AI-ready web crawling tailored for large language models, AI agents, and data pipelines.

## Key Features

- **Clean Markdown Generation**: Perfect for RAG pipelines or direct LLM ingestion
- **Structured Extraction**: CSS, XPath, or LLM-based pattern parsing
- **Advanced Browser Control**: Hooks, proxies, stealth modes, session re-use
- **High Performance**: Parallel crawling, chunk-based extraction, real-time capabilities
- **Open Source**: No forced API keys or paywalls

## Core Components

### Installation & Setup

- **Installation**: Available via pip or Docker
- **Docker Deployment**: Containerized deployment options

### Crawling Methods

- **Simple Crawling**: Basic single-page crawling
- **Deep Crawling**: Comprehensive multi-page crawling
- **Adaptive Crawling**: Intelligent crawling with information foraging algorithms
- **URL Seeding**: Custom URL starting points

### Technical Features

- **C4A-Script**: Custom scripting capabilities
- **Browser/Crawler/LLM Config**: Fine-grained configuration control
- **Markdown Generation**: Content conversion to markdown format
- **Fit Markdown**: Optimized markdown output
- **Page Interaction**: Dynamic page engagement
- **Content Selection**: Targeted content extraction
- **Cache Modes**: Various caching strategies
- **Local Files & Raw HTML**: Support for local content processing
- **Link & Media Handling**: Comprehensive asset management

### Advanced Features

- **Adaptive Strategies**: Intelligent crawling decisions
- **Virtual Scroll**: Handling infinite scroll pages
- **File Downloading**: Asset download capabilities
- **Lazy Loading**: Efficient content loading
- **Hooks & Authentication**: Custom authentication handling
- **Proxy & Security**: Secure crawling options
- **Undetected Browser**: Stealth browsing capabilities
- **Session Management**: Persistent session handling
- **Multi-URL Crawling**: Concurrent URL processing
- **Crawl Dispatcher**: Distributed crawling management
- **Identity Based Crawling**: User-specific crawling
- **SSL Certificate**: Secure connections handling
- **Network & Console Capture**: Comprehensive monitoring
- **PDF Parsing**: Document processing capabilities

### Extraction Strategies

- **LLM-Free Strategies**: Traditional extraction methods
- **LLM Strategies**: AI-powered extraction approaches
- **Clustering Strategies**: Content grouping techniques
- **Chunking**: Content segmentation methods

## Quick Start Example

```python
import asyncio
from crawl4ai import AsyncWebCrawler

async def main():
    async with AsyncWebCrawler() as crawler:
        result = await crawler.arun(url="https://crawl4ai.com")
        print(result.markdown)

asyncio.run(main())
```

## Support Options

- **GitHub**: Star, fork, or file issues on the repository
- **Discord**: Join community discussions
- **Contributions**: Pull requests welcome for fixes and features
- **Documentation**: Improve documentation through contributions

## Quick Links

- [GitHub Repository](https://github.com/unclecode/crawl4ai)
- [Installation Guide](core/installation/)
- [API Reference](api/async-webcrawler/)
- [Changelog](https://github.com/unclecode/crawl4ai/blob/main/CHANGELOG.md)

## FAQ

**Q: What is Crawl4AI?**
A: An open-source web crawler and scraper specifically designed for LLM-friendly data extraction and processing.

**Q: How do I install Crawl4AI?**
A: You can install via pip (`pip install crawl4ai`) or using Docker deployment options.

**Q: What makes Crawl4AI different from other crawlers?**
A: It's specifically optimized for AI workflows with clean markdown output, LLM-friendly formatting, and adaptive crawling capabilities.

**Q: Does Crawl4AI support authentication?**
A: Yes, through its hooks and authentication features in the advanced section.

**Q: Can I use Crawl4AI for commercial projects?**
A: Yes, it's open source and free to use for both personal and commercial projects.

**Q: What types of content can Crawl4AI extract?**
A: It can handle HTML content, markdown generation, PDF parsing, file downloading, and media/link extraction.

**Q: How does adaptive crawling work?**
A: It uses information foraging algorithms to determine when sufficient information has been gathered to answer specific queries.

**Q: Is there community support available?**
A: Yes, through GitHub issues and Discord community channels.

**Q: Can I contribute to the project?**
A: Yes, the project welcomes contributions through pull requests, issue reporting, and documentation improvements.

**Q: What programming language is required?**
A: Python is the primary language for using and contributing to Crawl4AI.

上面的操作还只是保留在容器内部，我们需要一个节点写入到磁盘中

添加Read/Write to disk，设置文件名：/home/node/2个大括号美元符('AI Agent').item.json.output.split('\n')[0] 2个大括号结束.md

因为我们n8n是通过docker容器启动的，映射到本地文件路径/Downloads/md下，所以要填写容器内部的地址前缀。

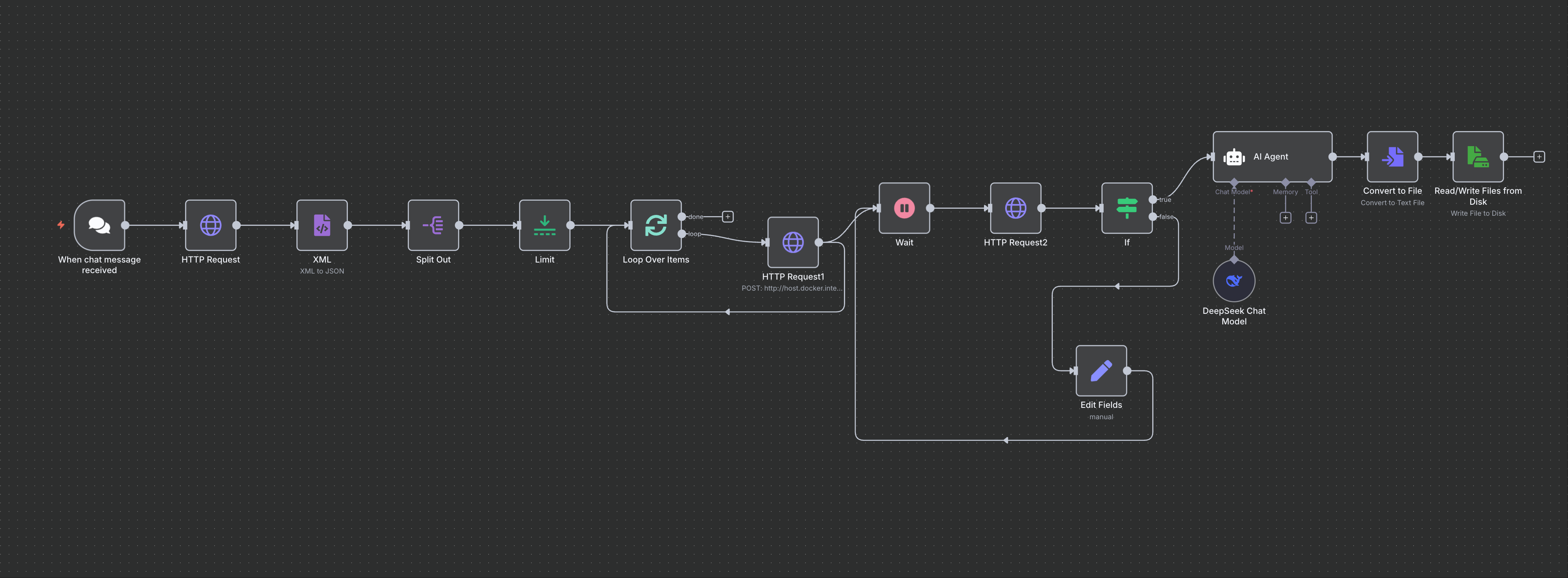

my workflow json

{
  "name": "My workflow",
  "nodes": [
    {
      "parameters": {
        "options": {}
      },
      "type": "@n8n/n8n-nodes-langchain.chatTrigger",
      "typeVersion": 1.3,
      "position": [-944, -128],
      "id": "fb413867-055f-44db-85bc-4565f64f5388",
      "name": "When chat message received",
      "webhookId": "9f595d89-bf70-4306-b0a2-74dcca651e43"
    },
    {
      "parameters": {
        "url": "=2个大括号 美元符json.chatInput 2个大括号结束",
        "options": {}
      },
      "type": "n8n-nodes-base.httpRequest",
      "typeVersion": 4.2,
      "position": [-736, -128],
      "id": "a4e15e4e-85e2-4eb9-b354-631be57a107e",
      "name": "HTTP Request"
    },
    {
      "parameters": {
        "options": {}
      },
      "type": "n8n-nodes-base.xml",
      "typeVersion": 1,
      "position": [-528, -128],
      "id": "0a5ce195-fae3-4f0e-8199-047fa11b82fa",
      "name": "XML"
    },
    {
      "parameters": {
        "fieldToSplitOut": "urlset.url",
        "options": {}
      },
      "type": "n8n-nodes-base.splitOut",
      "typeVersion": 1,
      "position": [-320, -128],
      "id": "ffb5ad33-7d5c-488b-bd31-5ce586b8d3ac",
      "name": "Split Out"
    },
    {
      "parameters": {
        "maxItems": 2
      },
      "type": "n8n-nodes-base.limit",
      "typeVersion": 1,
      "position": [-112, -128],
      "id": "8c6d0ccd-333e-4d6f-a3e5-5231e94e4b9c",
      "name": "Limit"
    },
    {
      "parameters": {
        "options": {}
      },
      "type": "n8n-nodes-base.splitInBatches",
      "typeVersion": 3,
      "position": [96, -128],
      "id": "e9bf6aee-b1e6-491a-ae6c-d0d40733df57",
      "name": "Loop Over Items"
    },
    {
      "parameters": {
        "method": "POST",
        "url": "http://host.docker.internal:11235/crawl",
        "authentication": "genericCredentialType",
        "genericAuthType": "httpHeaderAuth",
        "sendBody": true,
        "bodyParameters": {
          "parameters": [
            {
              "name": "urls",
              "value": "=2个大括号 美元符json.loc 2个大括号结束"
            },
            {
              "name": "priority",
              "value": "10"
            }
          ]
        },
        "options": {}
      },
      "type": "n8n-nodes-base.httpRequest",
      "typeVersion": 4.2,
      "position": [352, -96],
      "id": "af597253-6c8c-4e7b-a23d-a14d9d35a69c",
      "name": "HTTP Request1",
      "credentials": {
        "httpHeaderAuth": {
          "id": "j0XlGDse0pJoeuzb",
          "name": "Header Auth account"
        }
      }
    },
    {
      "parameters": {
        "amount": 7
      },
      "type": "n8n-nodes-base.wait",
      "typeVersion": 1.1,
      "position": [560, -160],
      "id": "1eeb5736-24c1-49e7-8aad-0f8a71b2d014",
      "name": "Wait",
      "webhookId": "3453b908-cc4e-44f3-9091-8431a83ebbad"
    },
    {
      "parameters": {
        "url": "=http://host.docker.internal:11235/task/2个大括号 任务id 2个大括号结束",
        "authentication": "genericCredentialType",
        "genericAuthType": "httpHeaderAuth",
        "options": {}
      },
      "type": "n8n-nodes-base.httpRequest",
      "typeVersion": 4.2,
      "position": [768, -160],
      "id": "e980b1b9-25c5-499a-8995-51c61c51a44c",
      "name": "HTTP Request2",
      "credentials": {
        "httpHeaderAuth": {
          "id": "j0XlGDse0pJoeuzb",
          "name": "Header Auth account"
        }
      }
    },
    {
      "parameters": {
        "conditions": {
          "options": {
            "caseSensitive": true,
            "leftValue": "",
            "typeValidation": "strict",
            "version": 2
          },
          "conditions": [
            {
              "id": "9b377858-726c-409d-812f-92e6e2d4b6a4",
              "leftValue": "=美元符 美元符json.status 2个大括号结束",
              "rightValue": "completed",
              "operator": {
                "type": "string",
                "operation": "equals",
                "name": "filter.operator.equals"
              }
            }
          ],
          "combinator": "and"
        },
        "options": {}
      },
      "type": "n8n-nodes-base.if",
      "typeVersion": 2.2,
      "position": [976, -160],
      "id": "8d82ff08-a04a-4595-8da7-38d39254b9ef",
      "name": "If"
    },
    {
      "parameters": {
        "promptType": "define",
        "text": "=角色设定：\n你是一名信息结构化和知识库开发的专家，请始终保持专业态度。你的任务是将 markdown 数据整理为适合 LLM 驱动的 RAG 知识库的结构化、易读格式。\n\n任务要求：\n1. 内容解析：\n\t- 识别 markdown 数据中的关键内容和主要结构\n\t\n2. 结构化整理\n\t- 以清晰的标题和分层逻辑组织信息，使其易于检索和理解\n\t- 保留所有可能对回答用户查询有价值的细节\n\t\n3. 创建 FAQ (如适用)\n\t- 根据内容提炼出常见问题，并提供清晰、直接的解答\n\t\n4. 提升可读性\n\t- 采用项目符号、编号列表、段落分隔等格式化排版，使内容更直观\n\t\n5. 优化输出\n\t- 严格去除 AI 生成的附加说明，仅保留清理后的核心数据\n\t\n响应规则：\n\n1. 完整性：确保所有相关信息完整保留，避免丢失对搜索和理解有价值的内容\n2. 精准性：FAQ 需紧密围绕内容，确保清晰、简洁且符合用户需求\n3. 结构优化：确保最终输出便于分块存储、向量化处理，并支持高效检索\n\n数据输入：\n<markdown>2个大括号 美元符json.result.markdown 2个大括号结束</markdown>",
        "options": {}
      },
      "type": "@n8n/n8n-nodes-langchain.agent",
      "typeVersion": 2.2,
      "position": [1184, -256],
      "id": "3f83ca09-b641-43aa-b87c-2024d6b4f930",
      "name": "AI Agent"
    },
    {
      "parameters": {
        "options": {}
      },
      "type": "@n8n/n8n-nodes-langchain.lmChatDeepSeek",
      "typeVersion": 1,
      "position": [1152, -16],
      "id": "49426a87-01db-4aed-a24e-1fff4c864bc9",
      "name": "DeepSeek Chat Model",
      "credentials": {
        "deepSeekApi": {
          "id": "这是我配置好的一个account，这里需要自己替换，不然你会使用我的apikey",
          "name": "DeepSeek account"
        }
      }
    },
    {
      "parameters": {
        "assignments": {
          "assignments": [
            {
              "id": "da8f744c-1fb9-4caf-93ad-19604faaa463",
              "name": "task_id",
              "value": "=2个大括号 美元符('HTTP Request1').item.json.task_id 2个大括号结束",
              "type": "string"
            }
          ]
        },
        "options": {}
      },
      "type": "n8n-nodes-base.set",
      "typeVersion": 3.4,
      "position": [928, 144],
      "id": "46e52f16-8ed8-4091-b9b2-d6ae9f48f43d",
      "name": "Edit Fields"
    },
    {
      "parameters": {
        "operation": "toText",
        "sourceProperty": "output",
        "options": {
          "fileName": "=2个大括号 美元符json.output.split('\\n')[0] 2个大括号结束.md"
        }
      },
      "type": "n8n-nodes-base.convertToFile",
      "typeVersion": 1.1,
      "position": [1472, -256],
      "id": "b74ace87-feff-4fb3-bf4d-1e413557e63a",
      "name": "Convert to File"
    },
    {
      "parameters": {
        "operation": "write",
        "fileName": "=/home/node/2个大括号 美元符now.toMillis() 2个大括号结束.md",
        "options": {}
      },
      "type": "n8n-nodes-base.readWriteFile",
      "typeVersion": 1,
      "position": [1632, -256],
      "id": "d6256b40-39c3-4f0f-99ba-98f5b5c1692e",
      "name": "Read/Write Files from Disk"
    }
  ],
  "pinData": {},
  "connections": {
    "When chat message received": {
      "main": [
        [
          {
            "node": "HTTP Request",
            "type": "main",
            "index": 0
          }
        ]
      ]
    },
    "HTTP Request": {
      "main": [
        [
          {
            "node": "XML",
            "type": "main",
            "index": 0
          }
        ]
      ]
    },
    "XML": {
      "main": [
        [
          {
            "node": "Split Out",
            "type": "main",
            "index": 0
          }
        ]
      ]
    },
    "Split Out": {
      "main": [
        [
          {
            "node": "Limit",
            "type": "main",
            "index": 0
          }
        ]
      ]
    },
    "Limit": {
      "main": [
        [
          {
            "node": "Loop Over Items",
            "type": "main",
            "index": 0
          }
        ]
      ]
    },
    "Loop Over Items": {
      "main": [
        [],
        [
          {
            "node": "HTTP Request1",
            "type": "main",
            "index": 0
          }
        ]
      ]
    },
    "HTTP Request1": {
      "main": [
        [
          {
            "node": "Loop Over Items",
            "type": "main",
            "index": 0
          },
          {
            "node": "Wait",
            "type": "main",
            "index": 0
          }
        ]
      ]
    },
    "Wait": {
      "main": [
        [
          {
            "node": "HTTP Request2",
            "type": "main",
            "index": 0
          }
        ]
      ]
    },
    "HTTP Request2": {
      "main": [
        [
          {
            "node": "If",
            "type": "main",
            "index": 0
          }
        ]
      ]
    },
    "If": {
      "main": [
        [
          {
            "node": "AI Agent",
            "type": "main",
            "index": 0
          }
        ],
        [
          {
            "node": "Edit Fields",
            "type": "main",
            "index": 0
          }
        ]
      ]
    },
    "DeepSeek Chat Model": {
      "ai_languageModel": [
        [
          {
            "node": "AI Agent",
            "type": "ai_languageModel",
            "index": 0
          }
        ]
      ]
    },
    "Edit Fields": {
      "main": [
        [
          {
            "node": "Wait",
            "type": "main",
            "index": 0
          }
        ]
      ]
    },
    "AI Agent": {
      "main": [
        [
          {
            "node": "Convert to File",
            "type": "main",
            "index": 0
          }
        ]
      ]
    },
    "Convert to File": {
      "main": [
        [
          {
            "node": "Read/Write Files from Disk",
            "type": "main",
            "index": 0
          }
        ]
      ]
    }
  },
  "active": false,
  "settings": {
    "executionOrder": "v1"
  },
  "versionId": "eaa39547-9834-4cfa-beb6-1690db508767",
  "meta": {
    "templateCredsSetupCompleted": true,
    "instanceId": "15d05c2bf77c578a2414cbd8d521f56edb66873a80d18c1bbefeaac88faf340a"
  },
  "id": "eqzRg57SxPjB0ypH",
  "tags": []
}

最终的一个摸样

点击放大

备注

因为对应的任务 id，不能直接写出来，所以使用中文替换，不然vercel部署不通过
因为美元符号和 2 个大括号读取变量的问题，也是vercel问题，所以这里使用中文描述，使用的时候进行替换

curl -X POST "https://api.kie.ai/api/v1/jobs/createTask" \
  -H "Content-Type: application/json" \
  -H "Authorization: Bearer 188b155ad1c5f35d26ab5de23f5536d8" \
  -d '{
    "model": "sora-2-text-to-video",
    "callBackUrl": "https://your-domain.com/api/callback",
    "input": {
      "prompt": "A professor stands at the front of a lively classroom, enthusiastically giving a lecture. On the blackboard behind him are colorful chalk diagrams. With an animated gesture, he declares to the students: “Sora 2 is now available on Kie AI, making it easier than ever to create stunning videos.” The students listen attentively, some smiling and taking notes.",
      "aspect_ratio": "landscape",
      "n_frames": "10",
      "remove_watermark": true
    }
}'

n8n crawl4ai

n8n+crawl4ai

安装 crawl4ai

n8n 本地部署安装

搭建工作

最终内容

上面的操作还只是保留在容器内部，我们需要一个节点写入到磁盘中

my workflow json

最终的一个摸样

备注

On this page
